E2209-16 STAINLESS STEEL ELECTRODE

Model No.︰E2209-16
Brand Name︰HBWELD
Country of Origin︰China
Unit Price︰-
Minimum Order︰-
Share on:

 Total 14 Related Items
12345Next

Product Description

HBE2209-16

                                            Accord to AWS E2209-16



HBE2209-16 is used primarily to weld duplex stainless steels which contain approximately 22 percent of chromium (grade 2205).

Weld metal deposited by HBE2209-16 has “duplex” microstructure consisting of an austenite-ferrite matrix.

It combines increased tensile strength with improved resistance to pitting corrosive attack and to stress corrosion cracking.



Chemical Analysis%



C

Mn

Si

S

P

Cr

Ni

Mo

N

Cu

Typical

0.04

0.5-2

1.00

0.03

0.04

21.5-23.5

8.5-10.5

2.5-3.5

0.08-0.2

0.75


Mechanical Property



T.S
Rm(MPa)

Y.S
ReH(MPa)

Elongation
A(%)

Impact
AKV(J)

Hml/100g

Typical

690

-

20

-

-



Package:

2kgs in one plastic tube

10 tubes in one carton

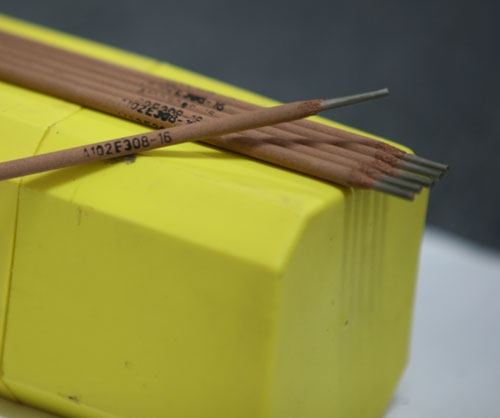

Product Image
